Lexus

IS (2013- ) [E30]

IS350 3.5 V6 Sedan [GSE31] (4-Pot Disc / Disc)

Search by Vehicle
Search by Part Number

Front

TDB2255

Type

Disc Pad Set

Dimension

4 Pads 118 x 78 x 18 mm

Structure

2 Inner Pads + 2 Outer Pads

FMSI

8224-D1118

WVA

20325

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Lexus

GS300 (March 2005)

View all variants

3.0 V6 Sedan [GRS190] (4-Pot 334mm Disc / 310mm Disc)
GRS190R 3.0 V6 4 Door Sedan
JZS160R
JZS160R Solid Disc

Lexus

GS350 (August 2005)

View all variants

3.5 V6 MPI 4 Door Sedan [GRS191R]
3.5 V6 Sedan [GRS191] (4-Pot 334mm Disc / 310mm Disc)

Lexus

GS430 (2005)

View all variants

4.3 V8 Sedan [UZS190] (4-Pot 334mm Disc / 310mm Disc)
GRS190R 4.3 V8 MPI 4 Door Sedan

Lexus

GS450h (May 2006)

View all variants

3.5 V6 Hybrid Sedan [GWS191] (4-Pot 334mm Disc / 310mm Disc)
3.5 V6 MPI 4 Door Sedan [GWS191]

Lexus

GS460 (March 2008)

View all variants

4.6 V8 MPI 4 Door [URS190]
4.6 V8 Sedan [URS190] (4-Pot 334mm Disc / 310mm Disc)

Lexus

IS (2005-13) [E20] (October 2010)

View all variants

IS300 3.0 V6
IS350 3.5 V6 Sedan [GRE21] (4-Pot 334mm Disc / 310mm Disc)
IS350 3.5 V6 Sedan [GSE21] (Disc-296mm Rotor / Disc)
IS350 3.5 V6 Sedan [GSE21] (Disc-334mm Rotor / Disc)

Lexus

IS (2013- ) [E30] (April 2013)

View all variants

IS250 2.5 V6 Sedan [GSE30] (Std 4-Wheel Disc)
IS250 2.5 V6 Sedan [GSE30] (With Sports Package)
IS300h 2.5 V6 Hybrid Sedan [AVE30] (1-Pot Disc / Disc)
IS350 3.5 V6 Sedan [GSE31] (4-Pot Disc / Disc)

Lexus

RC Series (2014 - On) [C10] (2014)

View all variants

RC350 Coupe [GSC15]

Rear

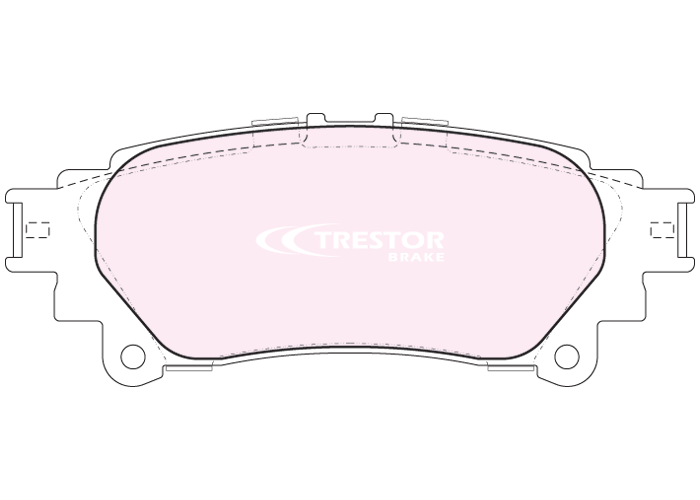

TDB2245

Type

Disc Pad Set

Dimension

4 Pads 115 x 46 x 16 mm

Structure

4 Pads

FMSI

8500-D1391

WVA

24918, 25525

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

Vehicle Compatibility

Lexus

IS (2013- ) [E30] (April 2013)

View all variants

IS250 2.5 V6 Sedan [GSE30] (Std 4-Wheel Disc)
IS250 2.5 V6 Sedan [GSE30] (With Sports Package)
IS300h 2.5 V6 Hybrid Sedan [AVE30] (1-Pot Disc / Disc)
IS350 3.5 V6 Sedan [GSE31] (4-Pot Disc / Disc)

Lexus

RC Series (2014 - On) [C10] (2014)

View all variants

RC350 Coupe [GSC15]

Lexus

RX Series (2009-15) [L10] (2009)

View all variants

RX270 2.7 FWD [AGL10]
RX350 3.5 V6 AWD [GGL15]
RX450h 3.5 V6 AWD [GYL15]

Toyota

Kluger (December 2013)

View all variants

3.3 V6 4dr Wagon [MCU28]
3.5 V6 AWD (7-Seat) Wagon [GSU45]
3.5 V6 AWD Wagon [GSU55]
3.5 V6 AWD Wagon[GSU40]
3.5 V6 FWD Wagon [GSU50]

Toyota

Prius-C (2011- ) [P10] (February 2012)

View all variants

1.5 Hatchback [NHP10] (Disc / Disc)
1.5 Hatchback [NHP10] (Disc / Drum)

Toyota

Prius-V (2011- ) [W40] (January 2012)

View all variants

1.8 7 Seat Wagon [ZVW40]
